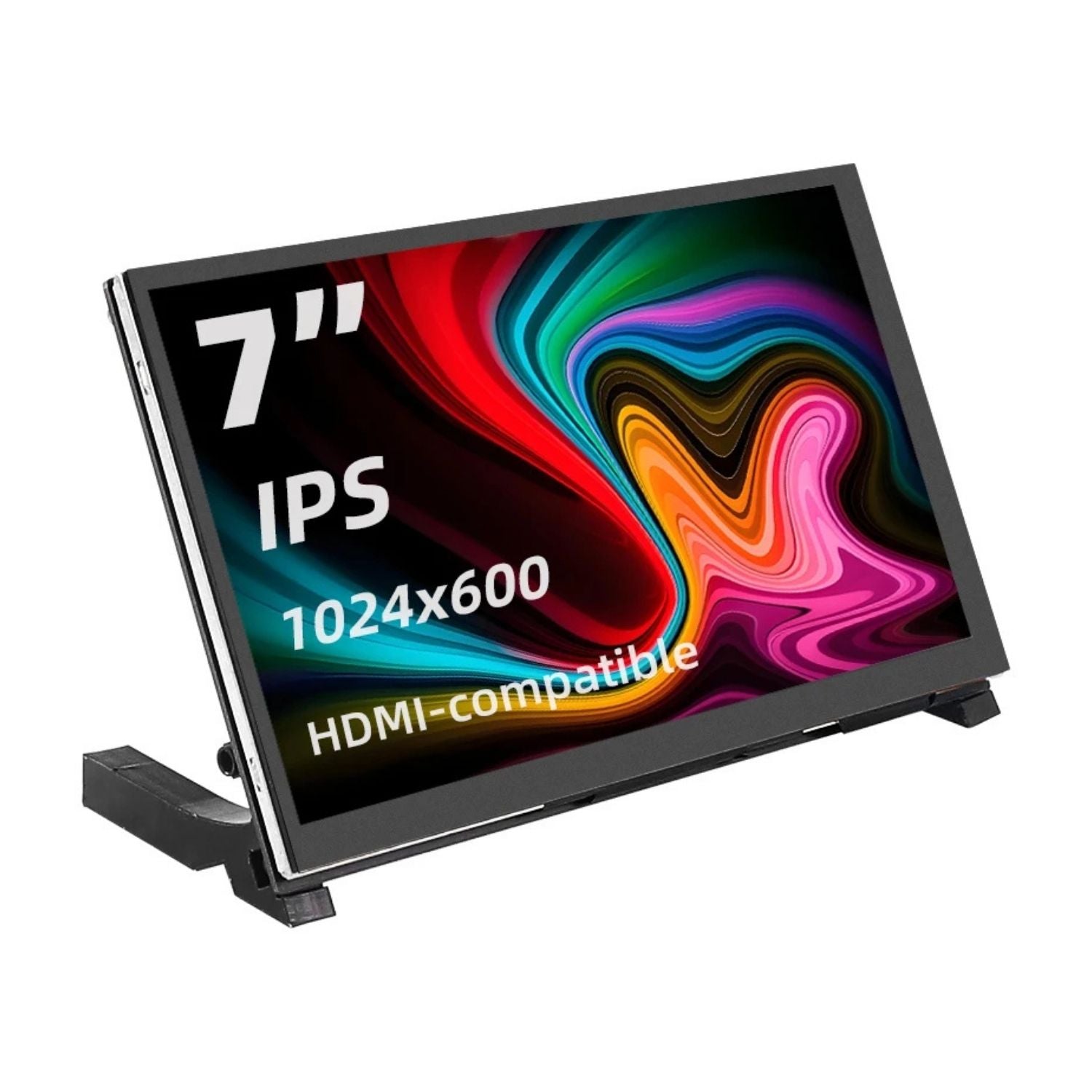

Portable 7-Inch External Mini Monitor – Touchscreen

Name: Portable 7-Inch External Mini Monitor – Touchscreen
Brand: Gear Castle
Price: 195.90 NZD
Availability: InStock

$195.90 NZD

~~$399.99 NZD~~ $195.90 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Product Features:

High-Definition Display:
1024×600 HD resolution with IPS full-angle display, offering wide viewing angles, true colors, and excellent dynamic picture quality.
Durable Touch Panel:
Equipped with a tempered glass touch panel with 6H hardness, making it more durable and scratch-resistant.
Flexible Connectivity:
Dual HDMI interfaces for PC and Raspberry Pi connections (supports up to 1920×1080 for PC, 1024×600 for Raspberry Pi).
Micro USB touch interface for power and touch signal transmission.
3.5mm audio interface for external speakers or headphones.
Backlight Adjustment:
Adjustable backlight brightness (increments of 10%, up to 100%) with one-click control. Press and hold for 3 seconds to turn off backlight.
Built-in Audio Output:
Integrated power amplifier circuit with 3.5mm external audio interface for rich sound quality.
Multi-System Support:

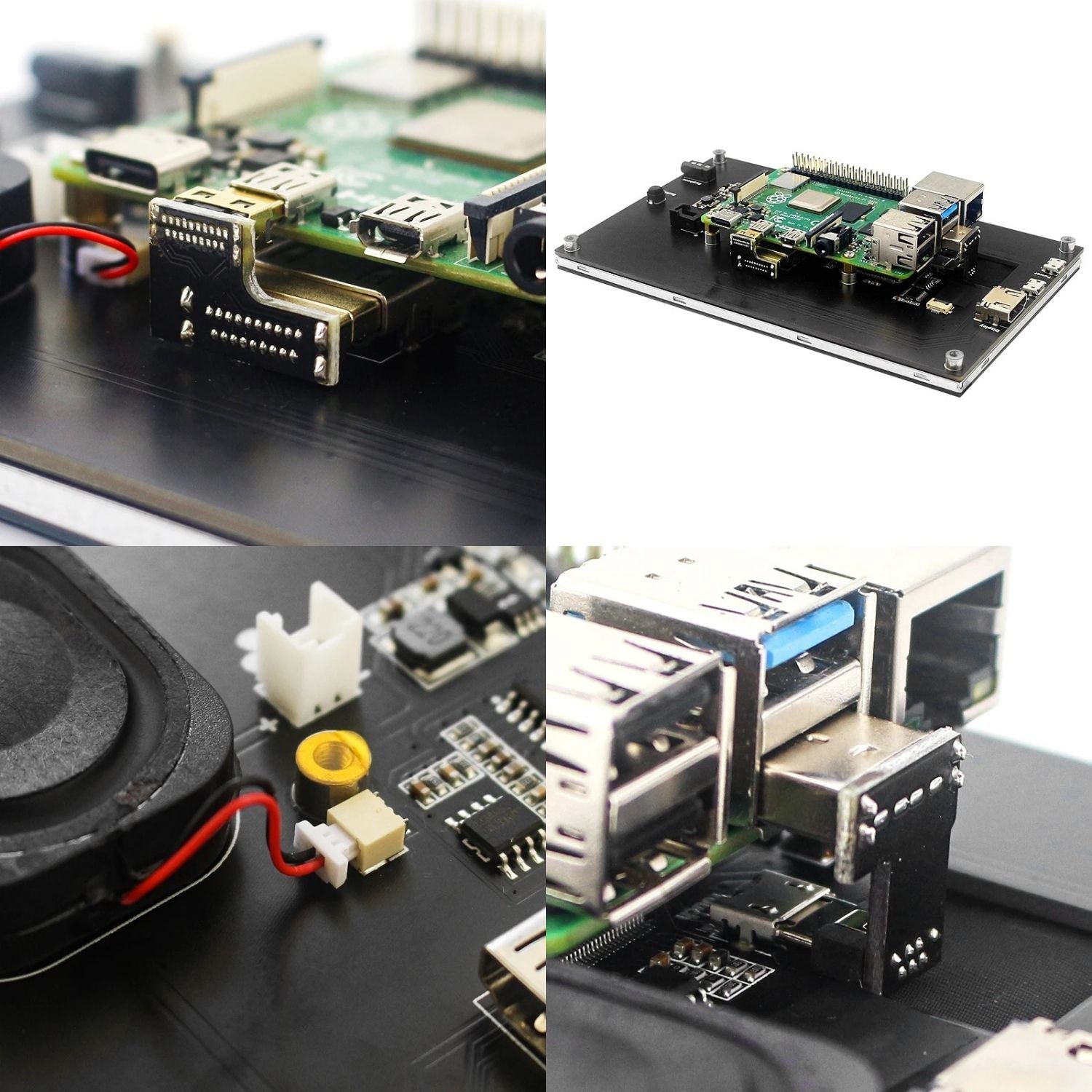

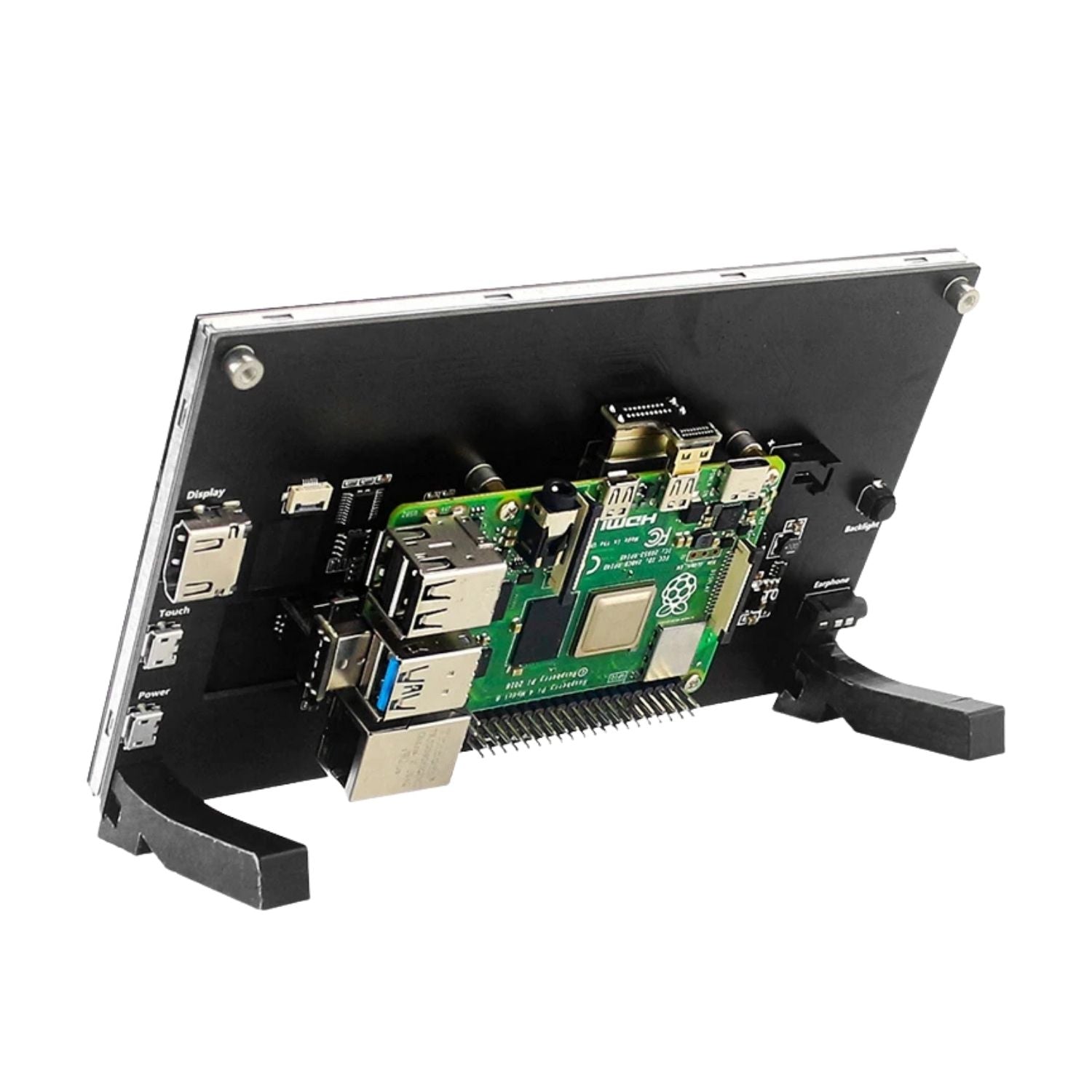

Compatible with Raspberry Pi, Banana Pi, BB Black, and other development boards.
Supports Raspbian, Kali Linux, Ubuntu, and other mainstream OS.

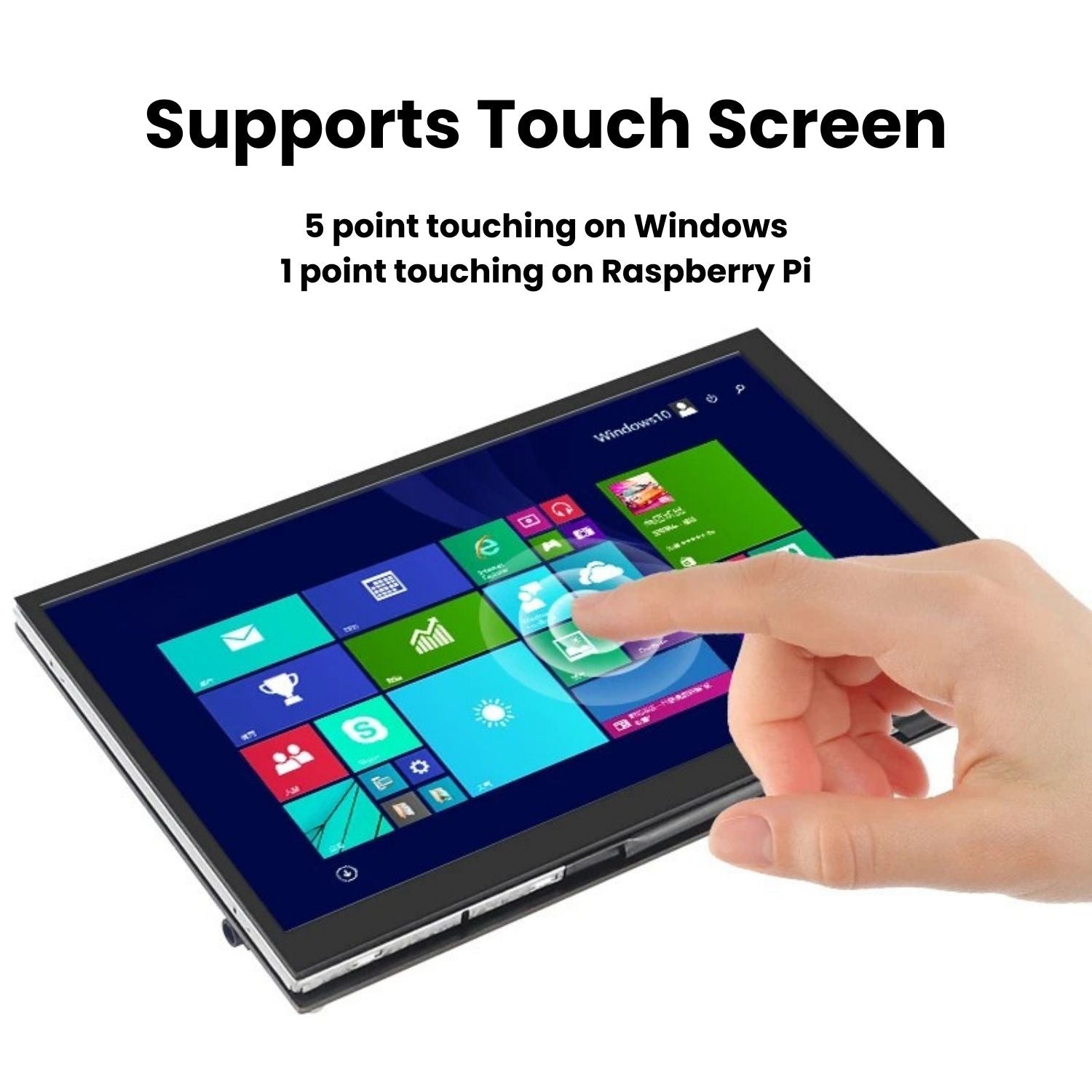

For Windows (Win10/8/7), supports five-point touch plug-and-play.
Mini PC Monitor Use:
Can be used as a computer display or as a portable monitor for development boards and DIY projects.
Energy-Saving & Eco-Friendly:
Designed with low power consumption for efficient performance.

Specifications:

Display Type: IPS Full-Angle Touchscreen
Resolution: 1024 × 600 HD (Raspberry Pi), 1920 × 1080 (PC HDMI Input)
Screen Size: 7-inch
Touch Panel: Tempered Glass, Hardness 6H, Scratch-Resistant
Speakers: Stereo dual speaker
Viewing Angle: Wide Full-Angle Display
Color Support: True Color, Excellent Dynamic Picture Quality

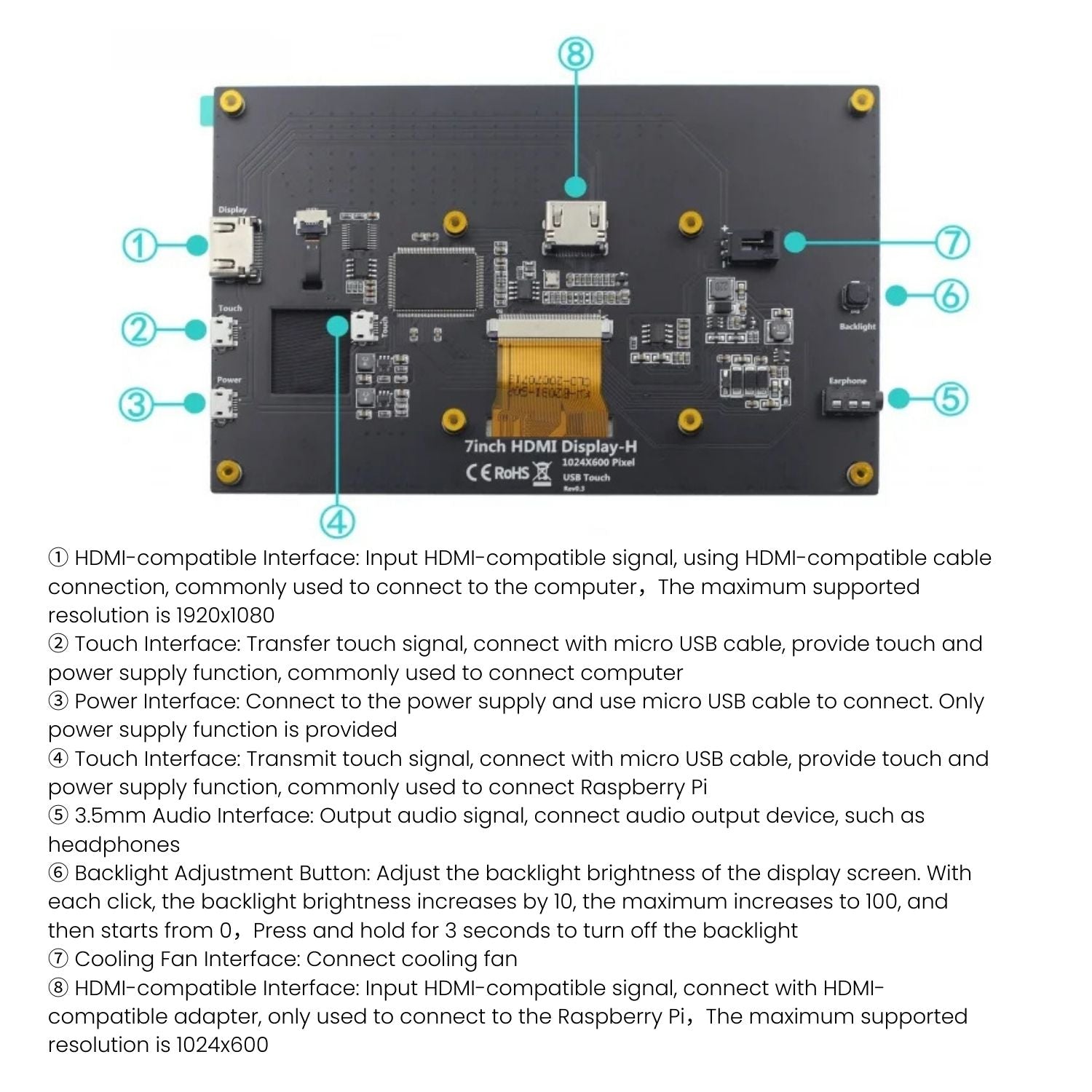

HDMI Input: 2 × HDMI (PC & Raspberry Pi)
Touch Interface: 2 × Micro USB for touch & power (PC & Raspberry Pi)
Power Interface: Micro USB for dedicated power supply
Audio Output: 3.5mm External Audio Interface, Built-in Amplifier
Backlight Control: Adjustable in 10% increments up to 100%, Press & Hold to Turn Off
Cooling Fan Interface: 1 × Connector for External Cooling Fan
Supported Systems: Windows 7/8/10 (5-point touch), Raspbian, Kali Linux, Ubuntu
Energy Efficiency: Low Power Consumption, Eco-Friendly
Usage: Mini PC Monitor, Development Boards, DIY Projects

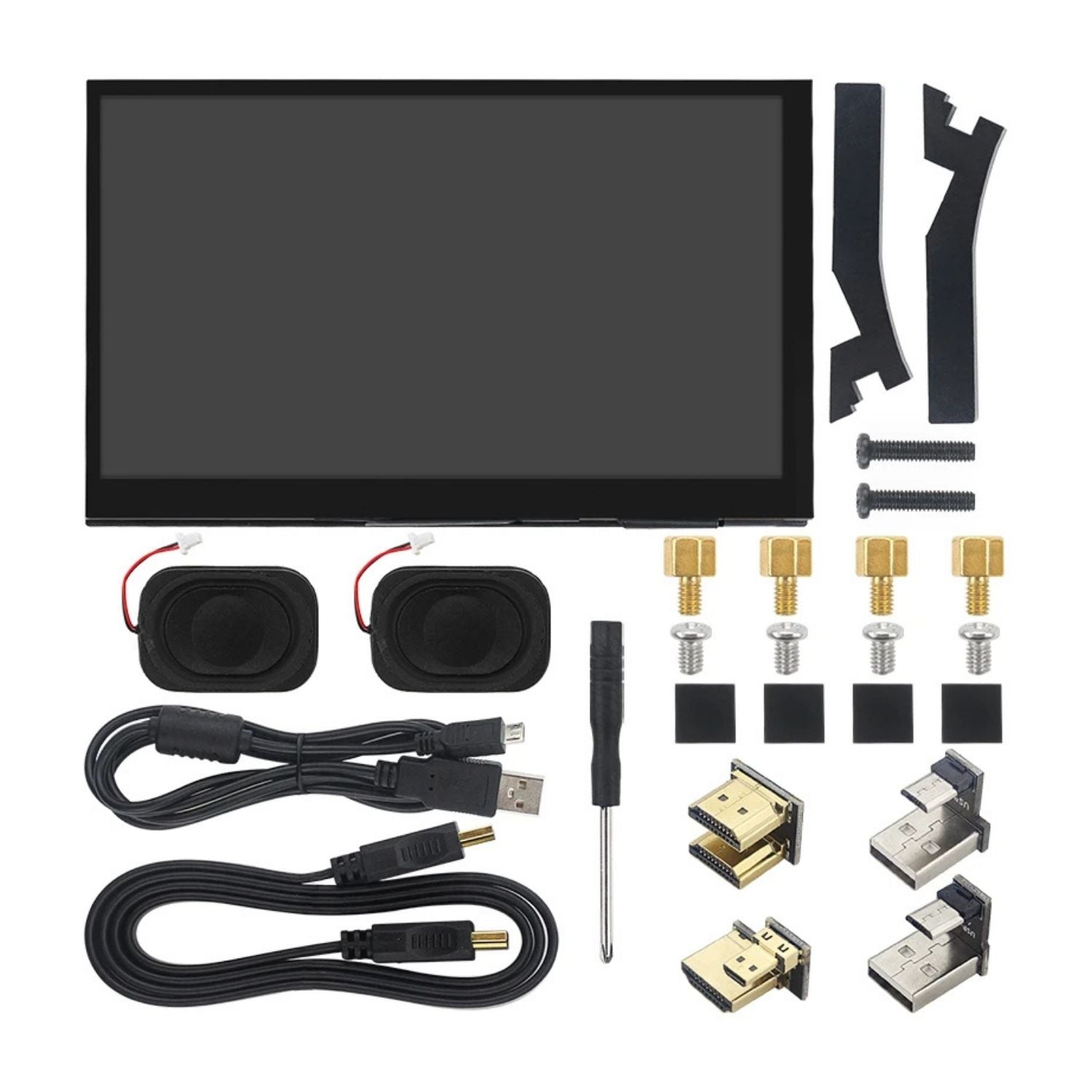

What's in the box:

1 x 7 Inch IPS Touch Screen
2 x Holder Feet
1 x HDMI-compatible to HDMI-compatible Cable
1 x USB to Micro USB Cable
1 x HDMI-compatible to Micro HDMI-compatible Conterter
1 x HDMI-compatible to HDMI-compatible Conterter
2 x USB to Micro USB Converter
1 x Screwdriver
1 set x Screws and Nuts
2 x Speakers
(not include Raspberry Pi)

For Working with Raspberry Pi:
https://www.lcdwiki.com/7inch_HDMI_Display-H?spm=a2g0o.detail.1000023.1.178clWhmlWhmee

Shipping Details

Shipping Rates:
We offer free standard shipping on orders over $35.

Processing Time:
All orders are usually processed within 1–5 business days.

Delivery Time:
For items stocked in our New Zealand and Australia warehouses, delivery via NZ Post and AU Post typically takes 3–5 working days.
For products with included batteries and International warehouse shipping may take up to 9 working days to arrive.

See our Shipping Policy for more info.

Warranty Information

1-Year Limited Warranty

All items purchased from our store are covered by a 1-Year Limited Warranty from the date of purchase.

- Warranty is valid only for the original purchaser and is non-transferable.
- Proof of purchase is required for all warranty claims.
- Shipping costs for returning a defective product may be covered by us depending on the claim approval.

See our Warranty Information page for more info.

Return & Refund

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.

To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

See our Return Policy page for more info.

View full details

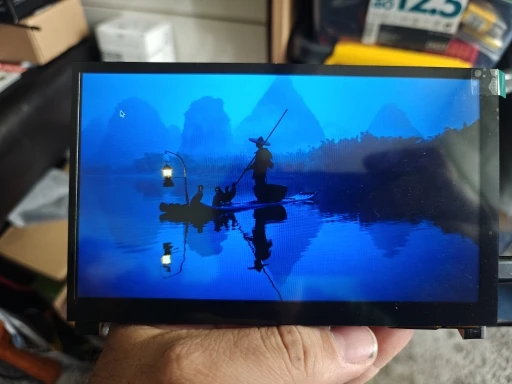

Great screen, good image. The back of the screen has 8 places to put screws, for fixing in the cabinet, making it easy to find a spot on the cabinet to adjust.

This display is awesome. Everything works as it should. I recommend it, of course.

Item as described and specified in the product description. Properly packaged for shipment. Despatched and delivered promptly.

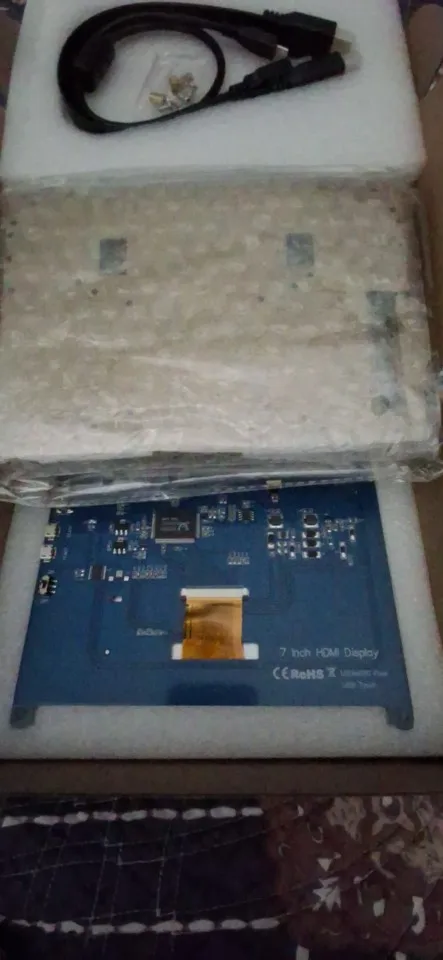

Good display, very well packed for transport.
Everything in the accessories comes with adapters to mount the computer behind the display.
It will be perfect as a terminal for Home Assistant.
Shipped quickly.
